Automatic Dumbbell Shape Sample Making Machine 1-50mm Sample
Thickness/ Number control prototype

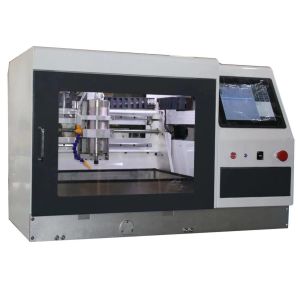

WZY-4030A CNC Sample Making Machine
The WZY-4030A CNC prototype is designed for manufacturing all types
of blocks and specimens for material testing on non-metallic raw
materials. It can process dumbbell-shaped, rectangular, and round
specimens, as well as notches for impact specimens, and mill
irregular surfaces into flat plates.
Using CNC technology, it controls a three-axis linkage system via a
program controller, driving XYZ-axis motors and complemented by a
high-speed spindle motor to form a high-precision machining system.
This enables the processing of various graphic samples with
precision.
Proctable graphics:
1. Dumbbell Specimen
Supports production of almost all standard dumbbell-type specimens.
The software has built-in dumbbell graphic programs, allowing
processing via operation interface selection without requiring
users to prepare machining programs—easy to operate and learn.
Custom programs for special shapes can be arranged by contacting
the manufacturer.
2. Rectangular Specimen
The most common is the 80×10 impact specimen. Select rectangular
processing in the software, input length/width and other necessary
parameters to start machining.
3. Round Sample Block
Most commonly used as a circular Vicat temperature test sample
block. Select circular processing in the software, input diameter
and other necessary parameters for machining.
4. Straight Cutting
Cutting operations can be controlled manually or via the linear
machining function in the program to realize plate cutting.
5. Notch Processing
Supports standard notches for beam or cantilever beam specimens.
The machine is equipped with R0.1, R0.25, and R1.00 standard notch
milling cutters, enabling production of three notch types specified
in standards on specimens.
6. Flat Milling
Irregular materials can be milled into flat surfaces by inputting
the length, width, and thickness of the milling surface in the
software.
Standard configuration of equipment:
1. Industrial Control Touch Screen
Controls linear motion, plug motion, and other processing actions
via an industrial-grade touch screen interface.
2. Electronic Handwheel
Standard equipment includes an electronic handwheel for precise
adjustment of spindle position.
3. Z-Axis Tool Feeding Device
Enables automatic Z-axis tool feeding for precision, saving time
and effort in operation.
4. Standard Tool Set
Comes with single-blade, double-blade milling cutters, and slotting
cutters, suitable for processing various materials.
5. Dual Tooling Configurations
Includes two types of fixtures: one for flat plates and one for
well-type plates, adapting to different material clamping needs.
Featured function:
1. High-precision & High-speed Machining
Capable of processing multiple specimens simultaneously. For
instance, dumbbell, rectangular, and round specimens can be
completed in a single operation on the same material.
2. Material Water-cooling Function
Features a water-cooling system to cool hot/melted materials during
processing, preventing thermal deformation.
3. Processing Error Compensation
Includes a compensation function for errors caused by material
expansion due to heating or compression during machining.
Main technical parameters:
| Maximum machining length | 400mm |
| Maximum processing width | 300mm |
| Maximum processing thickness | 50mm |
| Spindle motor speed | 24000r/min |
| Accuracy resolution | 0.003mm |
| The walking speed adjustable | 100-3000mm/min |
| Host size | 971×640×622mm(L×W×H) |
| The wight of the machine | 65kg |
