    Mechanical Properties Servo Hydraulic Universal Testing Machine For Bolts Screws / Studs

    Ask Lasest Price
    Brand Name : JINHAIHU
    Model Number : WAW-1000D
    Certification : ISO9001
    Payment Terms : T/T,L/C,D/A,D/P,Western Union,MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

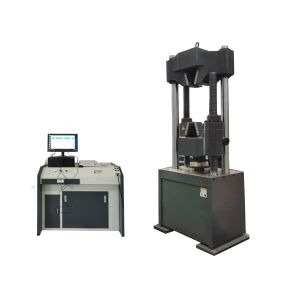

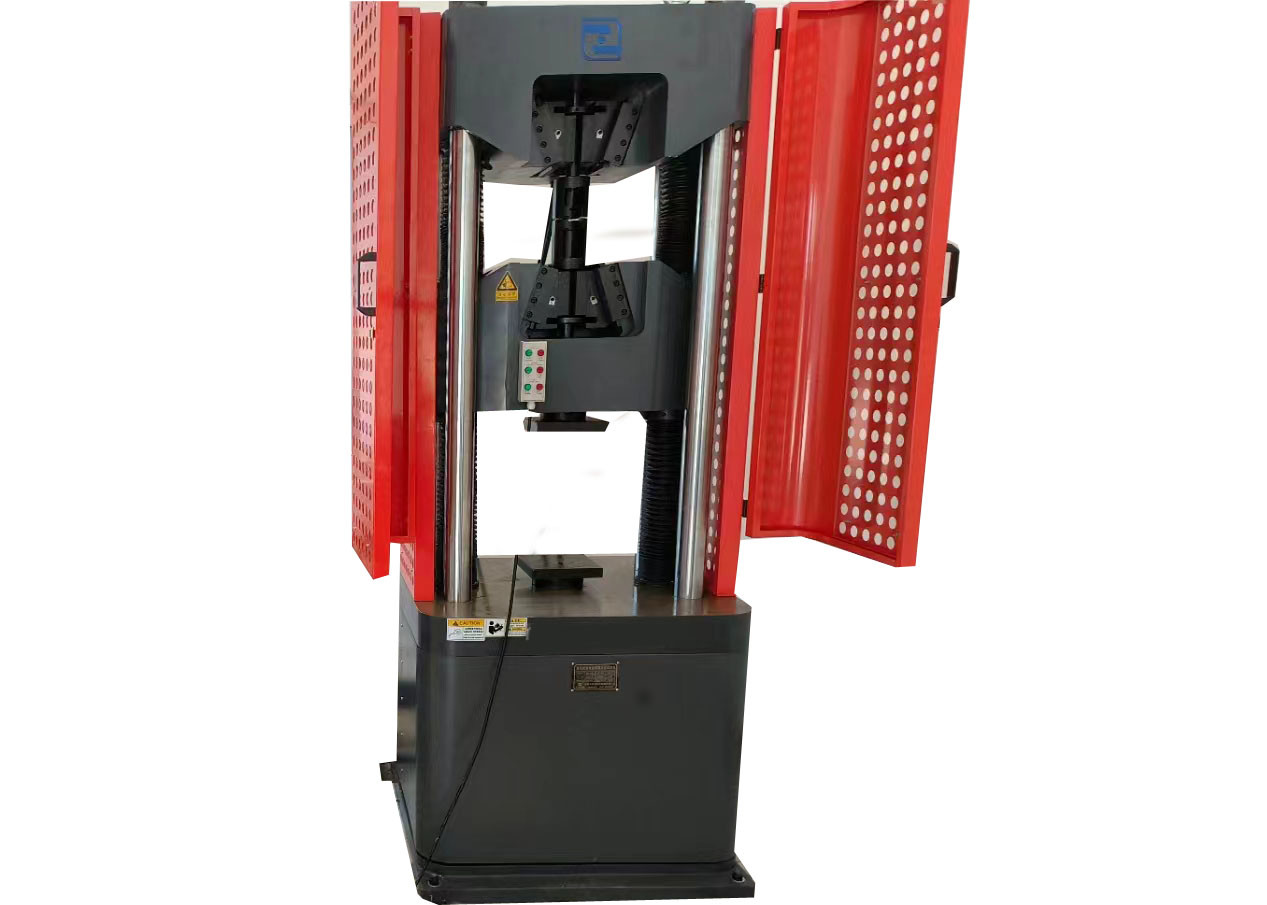

    Mechanical Properties Servo Hydraulic Universal Testing Machine For Bolts Screws / Studs

    Hydraulic Universal Testing Machine for Fasteners Mechanical Properties Bolts, Screws and Studs


    Product introduction:

    Hydraulic Universal Testing Machine for Fastener Mechanical Properties (Bolts, Screws, and Studs) is mainly used for tensile testing of metal materials and components, able to detect mechanical properties such as tensile strength (σb), yield strength (σs), elastic modulus (E), elongation at break (ε), etc. The machine adopts hydraulic wedge clamping.


    Hydraulic System:

    The motor drives the hydraulic oil in the tank to the high-pressure pump for oil suction, which flows through the check valve, high-pressure oil filter, differential pressure valve set, and servo valve into the oil cylinder. The computer sends control signals to the servo valve, adjusting the opening and direction of the servo valve to control the flow into the cylinder, realizing constant test force and constant displacement control. The oil returns to the tank via the tubing, pressure tubing, and oil return valve.


    Standards:
    ISO 6892, ISO 6934 BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.


    Main technical parameters:



    ModelWAW-1000D
    Structure6 Column (Four Columns Two Ball Screws)
    Control Way

    Constant Stress, Constant Deformation, Constant Displacement

    Three Closed Loop Control and Program Control

    Max.Load1000 KN (100 TONS)
    Load Accuracy≤±1% (Optional: ≤± 0.5%)
    Load Range

    0.4%-100%FS

    Load Resolution1/500000
    Deformation Measurement Range1%~100%FS
    Deformation Accuracy≤±1% (Optional: ≤± 0.5%)
    Displacement Resolution0.01mm
    Displacement Error≤±0.5%
    Max. Piston Stroke200mm
    Max. Piston Moving Speed0-50mm/min Stepless Speed Adjusting
    Crossbeams Lifting Speed250mm/min
    Max. Tension Test Space700mm (Can Be Customized)
    Max. Compression Test Space600mm (Can Be Customized)
    Center Spacing Between Columns600mm
    Column Effective Spacing500mm
    Clamping MethodHydraulic Automatic Clamp
    Round Specimen Clamping Range

    φ20~φ70mm

    Flat Specimen Clamping Range20-50mm
    Flat Specimen Clamping Width90mm
    Flat Specimen Clamping Length100mm
    Compression Plate SizeΦ160mm
    Bending Roller Distance450mm
    Width Of Bending Rollers140mm


    Frequently Asked Questions:

    Q1. Do you provide customization services?
    A1: Yes, absolutely. We offer not only standard machines but also customized solutions tailored to your specific requirements. Please feel free to share your needs, and we will strive to meet them.

    Q2. Can we visit your factory before placing an order?
    A2: Yes, we warmly welcome you and your team to visit our factory. We will assist in arranging accommodation and provide airport pick-up services.

    Q3. What is your warranty policy?
    A3: Our standard warranty period is one year. During the warranty period, we provide technical support and free part replacements. If needed, our engineers can travel to your location for on-site service.

    Q4. How is the machine packed, and how is it protected during transportation?
    A4: The machine is packed in a standard export wooden box to ensure safety. We have extensive experience in delivering testing machines overseas by sea or air, with a proven track record of damage-free transportation.
