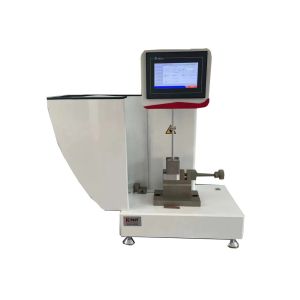

ISO179 Charpy Pendulum Impact Resistance Tester Notched Impact Test
Device
Application:
The ISO179 Charpy Pendulum Impact Resistance Tester (Notched Impact
Test Device) features a color touch-screen interface for operation.
It offers intuitive human-machine interaction, high precision, and
automatically displays impact energy, calculates impact strength,
computes the average impact strength of the entire sample set, and
allows arbitrary data deletion. Equipped with an electric hammer
release mechanism, the machine is constructed from high-quality
steel that undergoes aging treatment to prevent stress deformation.
It is designed to measure the impact toughness of non-metallic
materials such as hard plastics, fiber-reinforced composites,
nylon, FRP, ceramics, cast stone, plastic electrical components,
and insulation materials. Widely used in scientific research
institutions, universities, and industrial quality control
departments, the tester’s technical parameters fully comply with
the following standards:
- International Standard ISO179: Determination of Impact Strength of
Plastics - Charpy Impact Test
- National Standard GB/T1043: Charpy Impact Test Method for Rigid
Plastics
Working Principle:
A pendulum hammer with known energy strikes the sample supported on
a horizontal beam, destroying the sample with a single impact. The
impact point is centered between the two supports. By calculating
the energy difference of the pendulum before and after impact, the
energy absorbed by the sample during destruction is determined. The
impact strength is then calculated based on the original
cross-sectional area of the sample.
Instrument features:
1.The electronic impact testing machine employs circular grating
angle measurement technology.
2.It is characterized by high accuracy, stable performance, and a
wide measurement range.
3.It digitally displays impact strength, pre-elevation angle,
rising angle, and average values.
4.It is equipped with an automatic energy loss correction function.
Compliant standards:
ISO179-2000, ASTM D 6110, GB/T1043-2008, GB/T 18743-2002
Technical parameter:
| Impact velocity | 2.9m/s |
| Impact energy | 1J, 2J, 4J, 5J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 230mm |
| Pendulum moment | Pd 1=0.53590 Nm, Pd 2=1.07180 Nm, Pd 4=2.14359 Nm, Pd 5=2.67949 Nm |
| Impact blade round Angle | R=2.0±0.5mm |
| Accuracy | 0.05% |
| Temperature | -10℃～40℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz |
| Weight | 60KG |
Specimen Type Table for Charpy Impact:
Unit: mm
| Specimen type | Length (L) | Width (Y) | Thickness(X) | Span between supporting points(b) |
| 1 | 80±2 | 10±0.5 | 4±0.2 | 60 |
| 2 | 50±1 | 6±0.5 | 4±0.2 | 40 |
| 3 | 120±2 | 15±0.5 | 10±0.5 | 70 |
